3990
  • "Certified Hi-Speed ​​USB (USB 2.0)" regular certification product
  • USB Power Delivery EPR compatible
  • Cables can be inserted regardless of back or front
  • High-speed data transfer of up to 480Mbps is possible
  • Use flame-retardant material
  • Uses a double shielded cable
  • Gold-plated pin that is resistant to rust and suppresses signal deterioration

Specifications

Connector shape USB Type-C(TM) male to USB Type-C(TM) male
Compatible models PCs with USB Type-C(TM) terminals and peripheral devices with USB Type-C(TM) terminals
Cable length 1m, 2m
Cable thickness 4.2mm
Standard USB2.0 standard regular certification product
Supported transfer speed Maximum 480Mbps *Theoretical value
Supports USB Power Delivery Yes
Correspondence wattage up to 240W
Supports ALT mode No
Plug plating specification gold plated pins
Shield method Double shield
Twisted pair cable (communication line) Yes
Color Black
Environmental considerations EU RoHS directive compliant, THINK ECOLOGY mark
Qty available:0

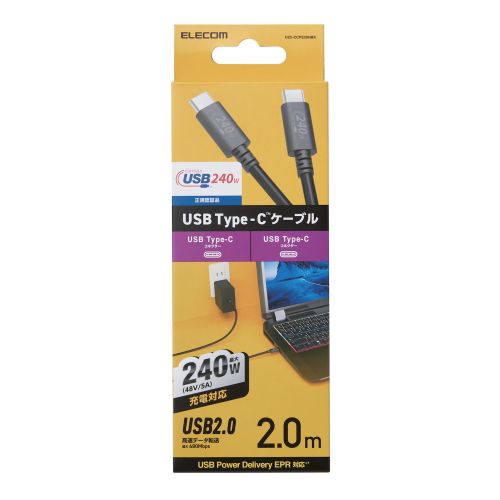

USB 240W Cable Type-C to Type-C U2C-CCPE Series
3990
