A double structure of the protector and the new materials connector adoption, in the normal use environment is not broken nail absolutely! ? 10G BASE-T in response, optimum slim type of LAN cable to the wiring in such a narrow space with a diameter of just 4.3mm . ? 1000 times passed the bending test (our verification)


Color: Blue metallic
Interface: RJ-45 connector
Environmental consideration matter EU RoHS order conformity (10 materials)
Standard: CAT7 conformity (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T) ?Cat7 conformity only as for the cable part. Connector is RJ45 Specifications.
Line speed 10Gbps
Transmission band 600MHz
Cable length 1m, 2m, 3m, 5m, 10m
Cable thickness 4.3mm
The number of the cores 8 cores
Connection method Straight connection
Twist vs. core line (twisted pair cable) Yes
Shield Yes
jujikaizai X
Outside sheath (film) materials PVC
With length mark X
Conductor constitution Twist line (32AWG)
Connector presence With both ends connector
Mold processing connector Yes
Slim connector Yes
Connector with prevention of nail buckling up cover Yes
Cable rewind function X
Package form Box + inner tray
Connector which is not broken of nail Yes


Qty available:4

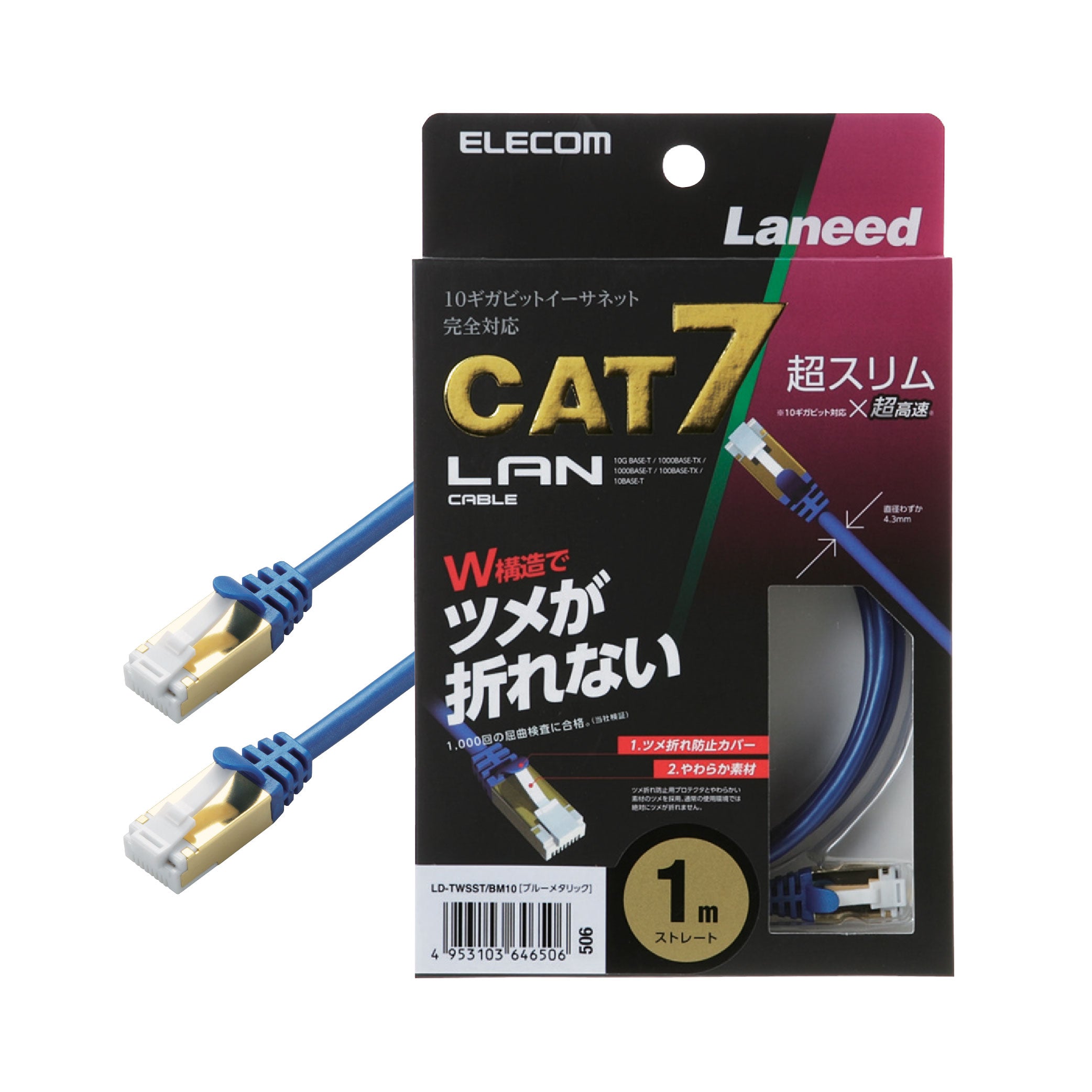

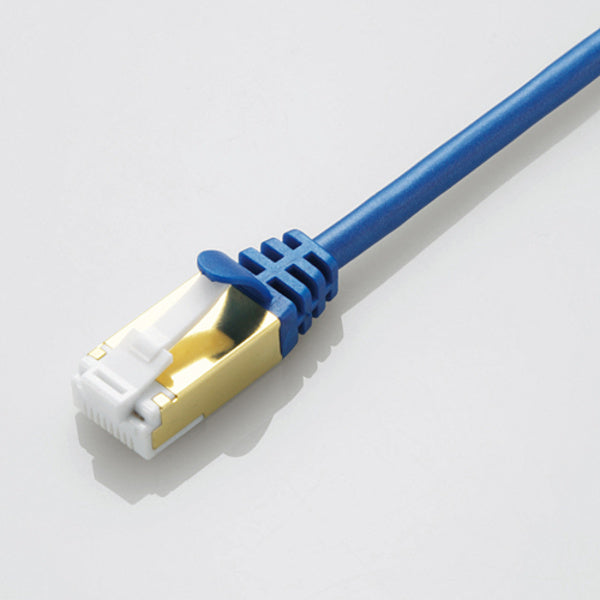

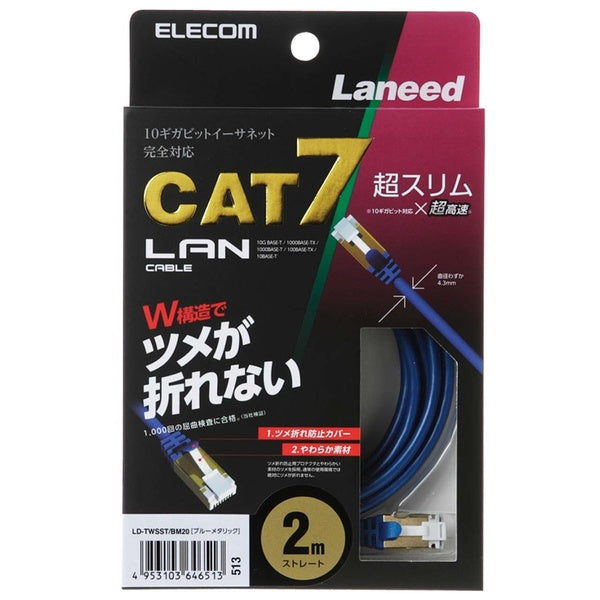

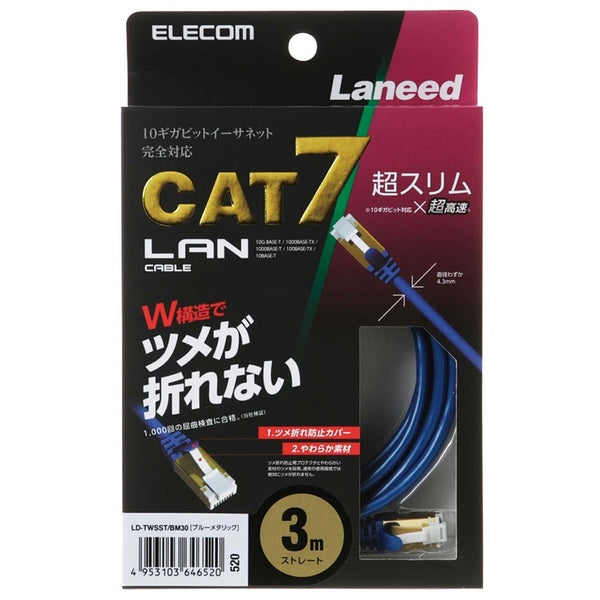

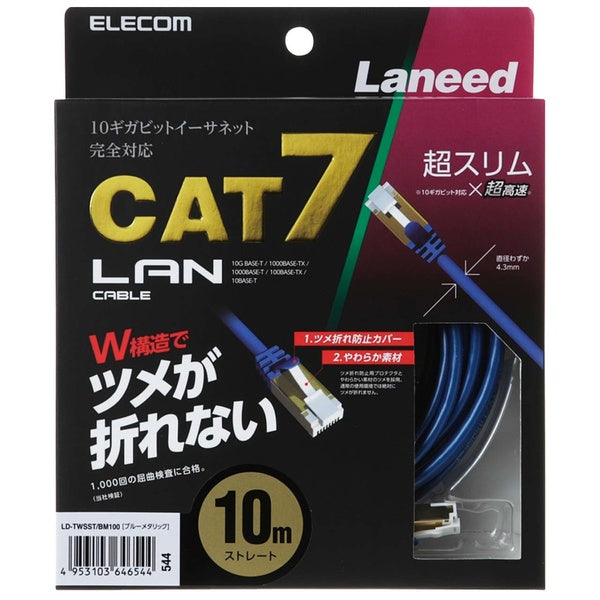

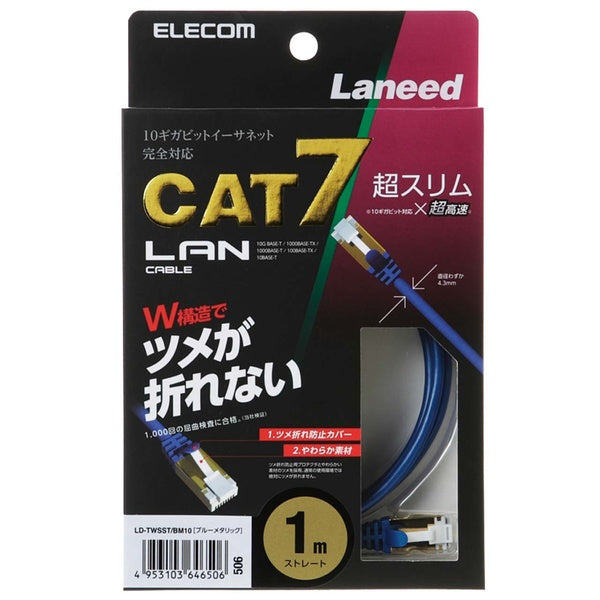

CAT 7 LAN Cable LD-TWSST Series (Slim) 1m, 2m, 3m, 5m, 10m
