3490

Corresponding to Gigabit Ethernet in the normal use environment in the double structure of the protector and the new material connector adopted to guarantee the absolute is not broken nail in! Frequency band 250MHz. Slim type of LAN cable that conforms to the optimum Category 6, such as in a narrow space with a diameter of just 3.5mm 1000 times of bending test pass (our verification)

Specifications

Color: < Blue >
Line speed 1Gbps
Interface: RJ-45 connector
Environmental consideration matter EU RoHS order conformity (10 materials)
Standard: Cat6 conformity (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX conformity)
Transmission band 250MHz
Cable length 1m, 2m, 3m, 5m, 10m, 20m
Connection method Straight connection
Twist vs. core line (twisted pair cable) Yes
Shield No
jujikaizai No
Outside sheath (film) materials PVC
Conductor constitution Twist line (28AWG)
Connector presence With both ends connector

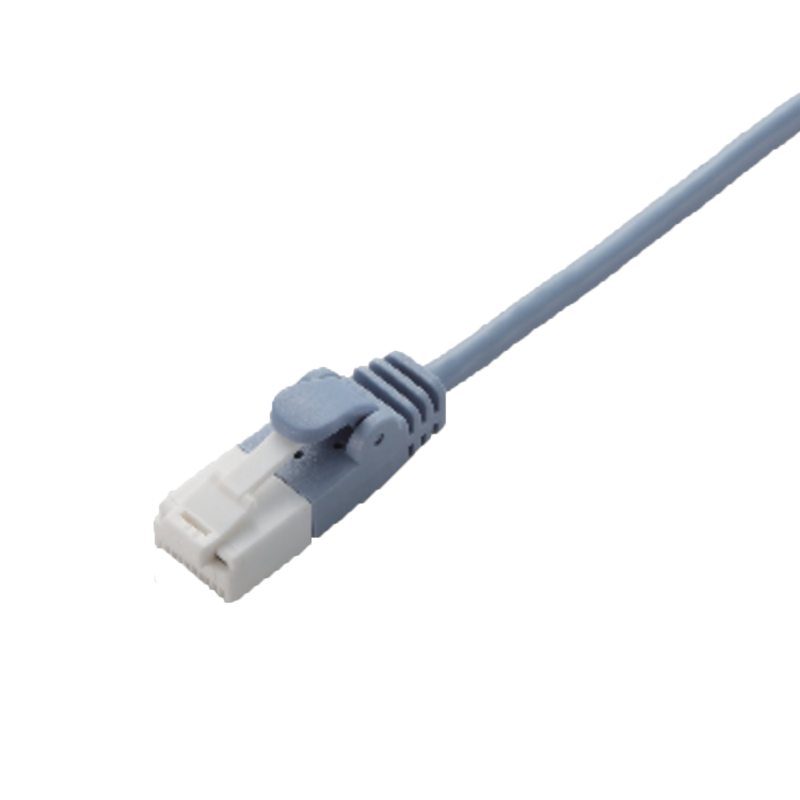

Slim connector Yes
Connector which is not broken of nail Yes
Connector with prevention of nail buckling up cover Yes
Cable rewind function No
Package form Aluminum foil bag + sticker
Cable thickness 3.5mm
The number of the cores 8 cores
With length mark No
Mold processing connector Yes
Qty available:9

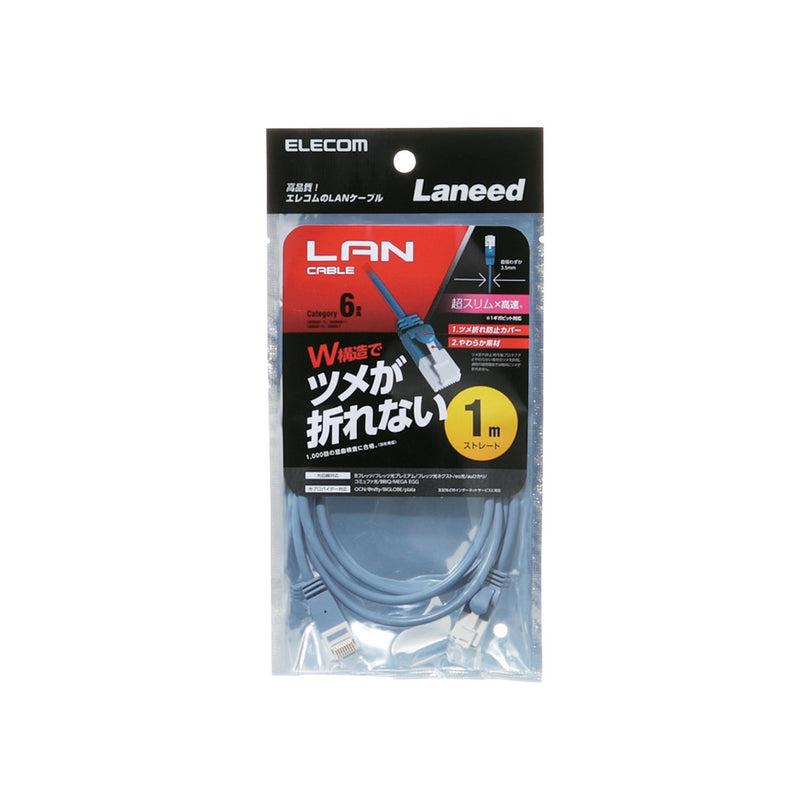

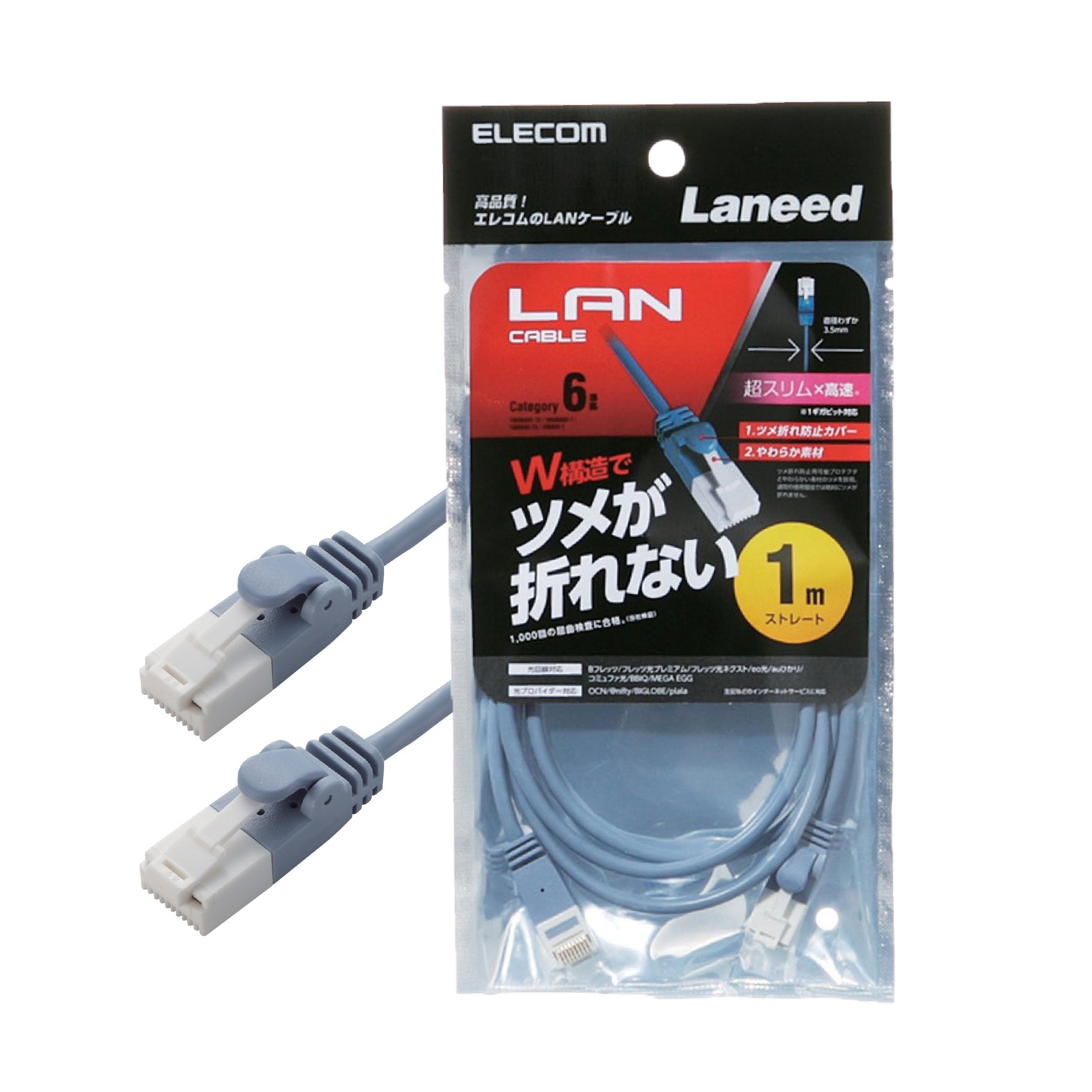

CAT 6 LAN Cable LD-GPST Series (Slim) 1m, 2m, 3m, 5m, 10m, 20m
